Push Pier Foundation Repair for Garage Stabilization in Alexandria, VA
Table of Contents

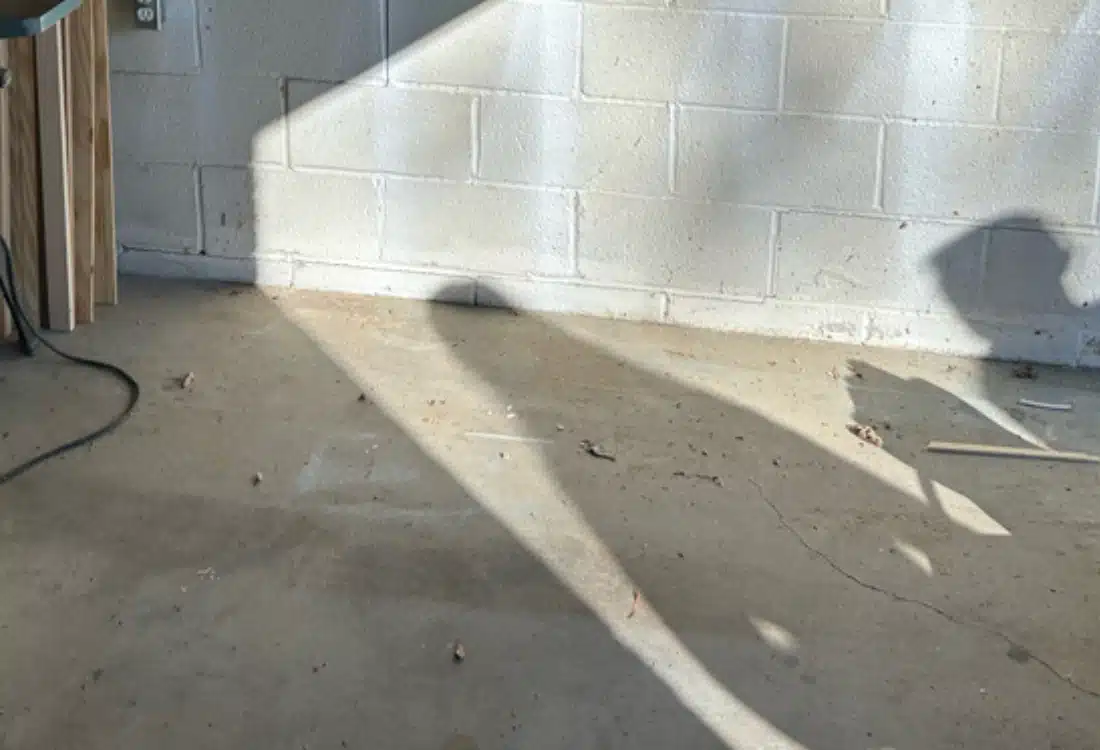

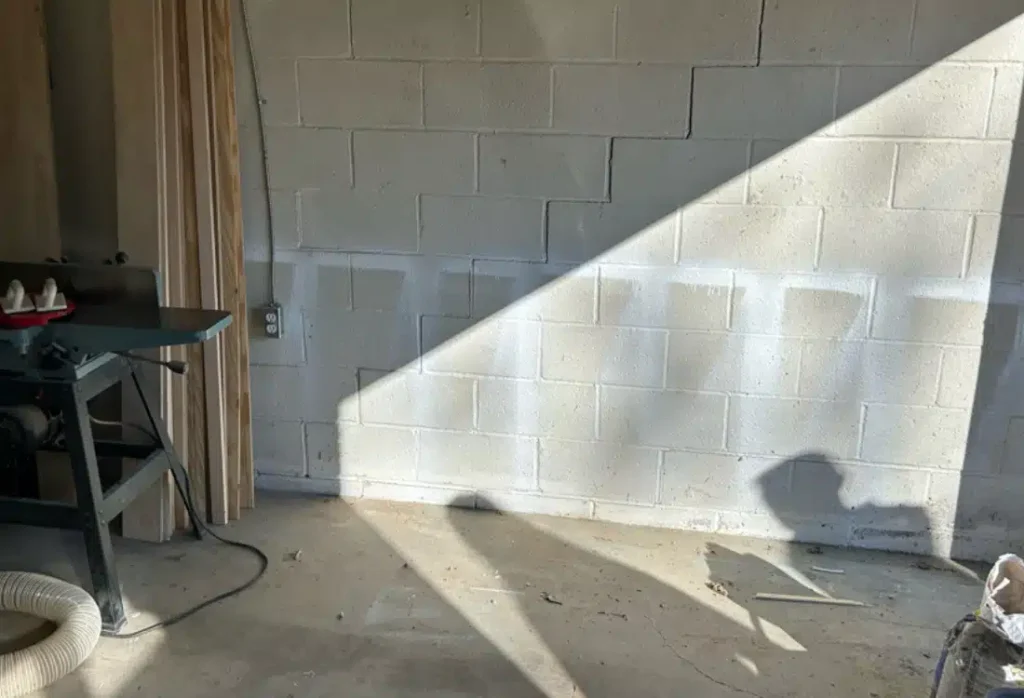

The Challenge: Foundation Settling, Cracks in the Wall, and Floor Damage in the Garage
Cy, a homeowner in Alexandria, VA, began noticing hairline cracks spreading across the garage floor and along the walls. What seemed like minor cosmetic issues at first quickly raised red flags, prompting him to seek expert advice.
Having seen similar problems in neighboring homes, Cy suspected his garage foundation was settling. He contacted LUX Foundation Solutions for a professional evaluation.
During our inspection, we confirmed that the foundation had settled unevenly, leading to structural stress and visible damage in the form of wall and floor cracks. Left unaddressed, these signs pointed to much more serious underlying issues.
Here’s what could have happened if the problem was ignored:
- Worsening Cracks: Minor cracks can expand, compromising the structural integrity of the garage.
- Continued Foundation Movement: Ongoing settling could lead to uneven floors, sticking doors, or even structural failure.
- Higher Repair Costs: Delaying repair often leads to more extensive—and expensive—fixes later on.
- Decreased Property Value: Visible foundation issues are a major red flag for potential buyers.
- Safety Hazards: Uneven floors and unstable structures pose risks to household safety.
Recognizing the urgency of the situation, we acted quickly to implement a permanent foundation repair solution that would stabilize and restore the garage’s safety and value.
The Solution: Push Pier Installation Inside the Garage
LUX Foundation Solutions implemented a comprehensive approach to stabilize Cy’s foundation and restore the garage floor. The solution involved installing foundation push piers to address the settling issues.

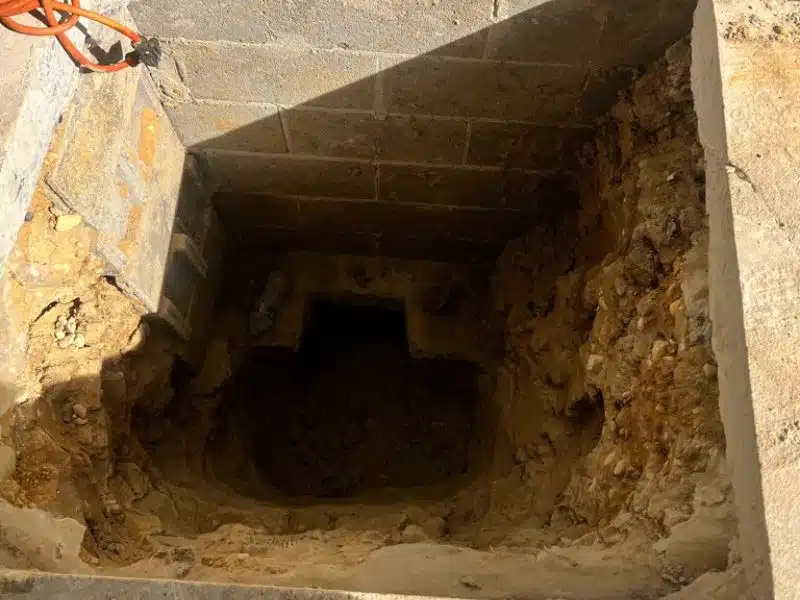

Step 1: Excavation of Pier Locations
Our team began by excavating specific locations inside the garage to access the foundation footings. These areas were carefully dug to allow for precise placement of the push piers.

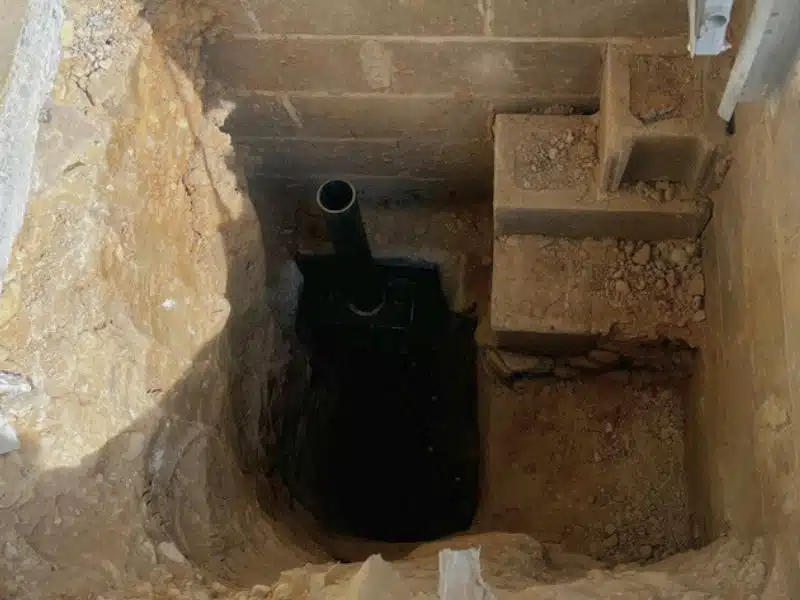

Step 2: Driving Push Pier Pipes into Load-Bearing Soil
Once the footing was exposed, we hydraulically drove steel push pier pipes deep into the ground. These interlocking steel pipes were pushed one segment at a time until they reached stable, load-bearing soil or bedrock, ensuring lasting foundation support.

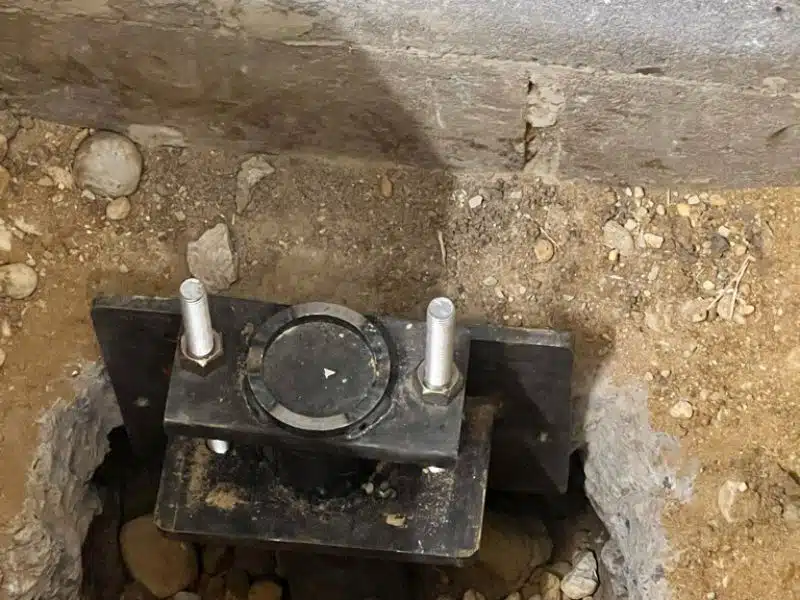

Step 3: Bracket Installation and Load Transfer
After reaching the required depth, we installed heavy-duty steel brackets onto the foundation footing. These brackets connect the foundation to the piers. We then transferred the weight of the foundation onto the push piers, gently lifting and stabilizing the structure.

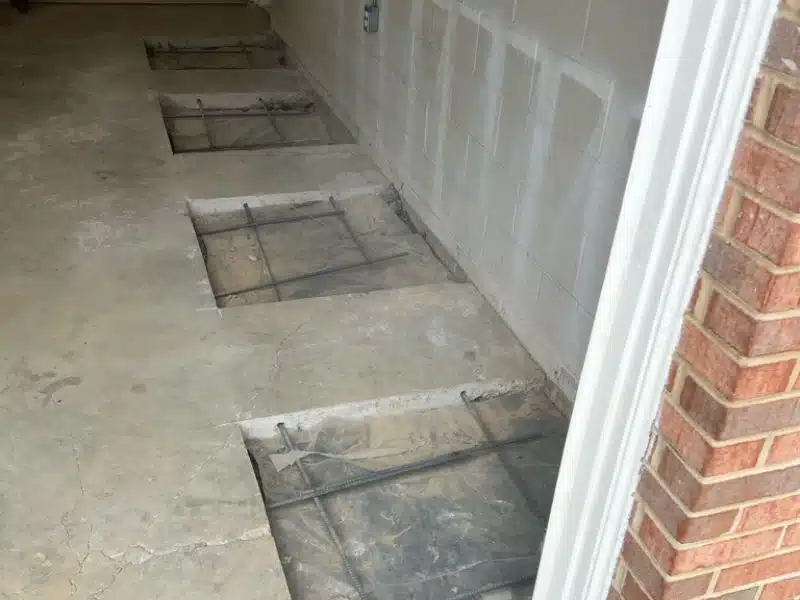

Step 4: Backfilling and Concrete Restoration
With the foundation fully stabilized, we backfilled the excavated areas around the piers and poured new concrete to restore the garage floor. The finished result was a clean, level surface with minimal disruption to Cy’s daily life.

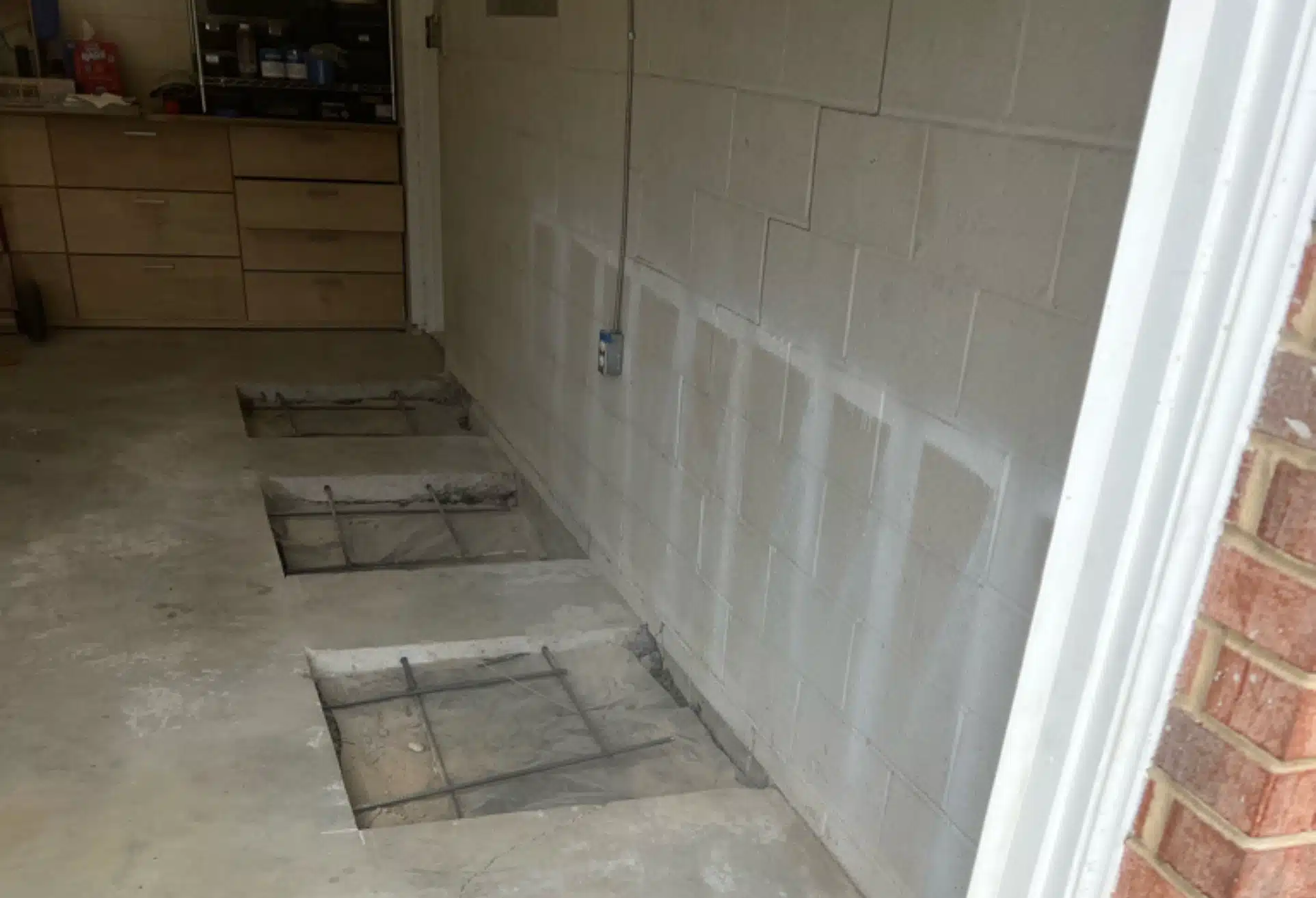

The Results: Restored Garage Foundation and Structural Integrity
With the successful push pier foundation repair, Cy’s garage is no longer a source of worry—it’s now a safe, stable, and secure part of his home. The work carried out by LUX Foundation Solutions not only resolved the immediate issues but also provided long-term protection against future foundation problems.
Here’s what was achieved through our expert repair process:
✅ Restored Foundation Stability:
One of the key advantages of installing push piers is their ability to anchor the foundation to stable soil. In this case, four interior push piers provided deep, lasting support, eliminating further movement and settling.
✅ Level Garage Floor:
The once-uneven garage floor was lifted and leveled, removing trip hazards and restoring both function and appearance.
✅ Crack Elimination and Prevention:
The visible hairline cracks in the floor and walls were resolved, and the foundation’s stabilization helps prevent new cracks from forming.
✅ Long-Term Protection:
The push piers are designed to deliver permanent structural support, safeguarding the home from future foundation damage.
✅ Increased Property Value:
With a solid, stable foundation, the home is more attractive to potential buyers and retains its value over time.
✅ Minimal Disruption:
All work was completed efficiently inside the garage with little to no interference with Cy’s daily life.
